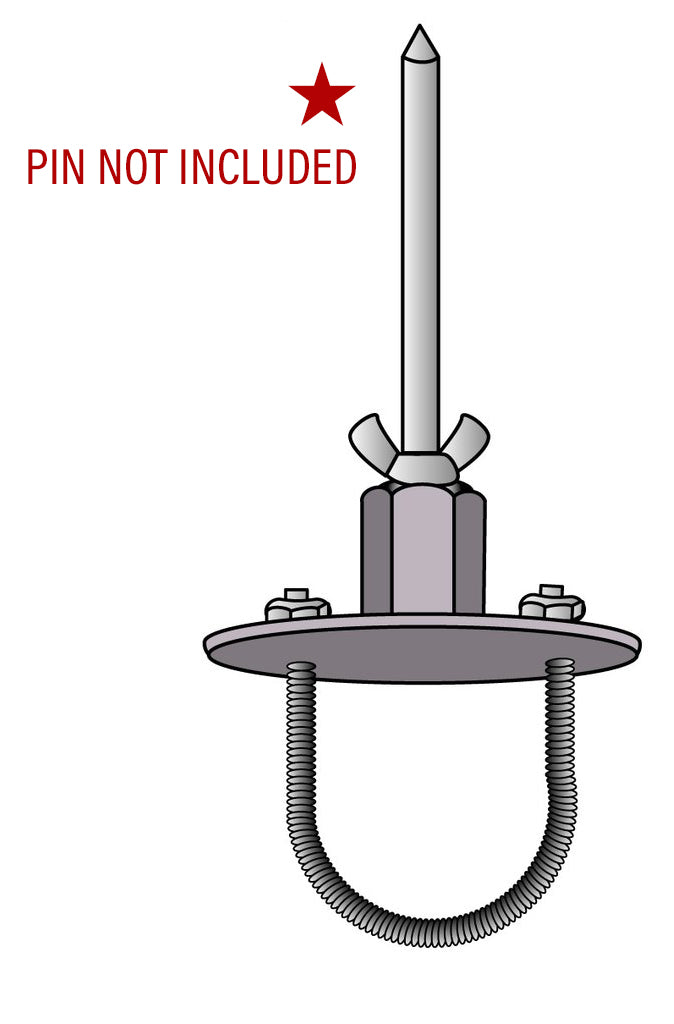

GS-7 Canvas Mount Kit/U-Bolt
Canvas Permanent Mount Kit/U-Bolt type
Best for Boats with a canvas top.
- Unclip on half of the forward edge along the windshield. This makes it possible to mount from within the cockpit.
- Screw the bearing pin into hex coupling. With the base centered over the middle bow, with holes fore and aft, outline the base with a pencil to mark position.
- With sharp instrument (ice pick) make 2 holes in the marked positions just large enough to insert u-bolt.
- Inset u-bolt from below; place the washer over u-bolt on top of the canvas and tighten up the lock nuts.
The GS-7 can also be used as a permanent rail mount (up to 1") with mounting option GS-RM. If rail is not parallel to the water surface, an angle bracket can be added which gives adjustability to set the mounting pin vertical to the water.
